제품 상세 정보:
결제 및 배송 조건:
|
| GW: | 16.5kg | 용접 방법: | 동일 측 |
|---|---|---|---|
| 전압: | 220V | 빈도: | 50Hz |
| 힘: | 1400W | 용접 속도: | 0-8m/min |
| 용접 재료 두께: | 0.8mm-4mm | 난방 온도: | 0-450C |
| 순중량: | 11.5kg |

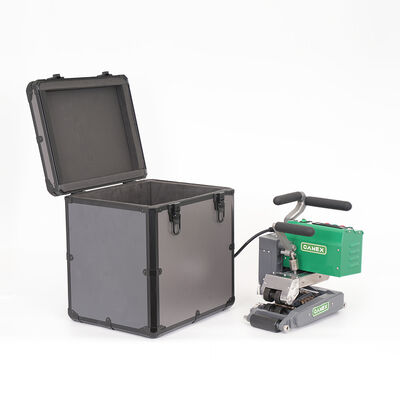

CX series geomembrane welding machines are equipped with copper or brass hot wedges to ensure efficient and accurate welding processes, meeting the welding requirements of membranes made from different materials. The bearings throughout the machine are imported from Germany, providing excellent stability and durability that effectively extends equipment service life and ensures long-term stable operation.
These welding machines are suitable for geomembranes with thickness ranging from 0.3-4.0mm. They are easy to operate and deliver excellent performance, making them ideal choices for geomembrane welding projects. The hot air guns feature replaceable welding nozzles to adapt to different welding needs, and they utilize imported heating elements to ensure long-term stable operation at high temperatures.
| Voltage | 220V |
|---|---|
| Frequency | 50HZ |
| Power | 1400W |
| Welding Speed | 0-8m/min |
| Heating Temperature | 0-450℃ |
| Welding Material Thickness | 0.8mm-4mm |
| Weld Seam Strength | ≥85% original material |
| Overlap Width | 120mm |
| Net Weight | 11.5kg |
| Certificate | CE |
Main frame constructed from aviation aluminum, die-cast and painted surface for lightweight strength
CNC-machined bearing positions using Japanese IKO needle roller bearings and German NSK deep groove ball bearings
Computer chip programming controls temperature and speed with LCD digital display
Ergonomic double handle design with high-strength spring pressure nut for easy adjustment
Copper hot wedge provides superior thermal conductivity and secure screw fixation
50mm water-resistant capability with curved tube design heating cartridge
